Hygien Pump M70/H52 Topping

Inox 316 high luster stainless steel

FIELD OF APPLICATION

It is a pump 2:1 with a hygienic design, easy to handle and versatile, it has variable flow rates up to 11 l/min (water) with a short suction tube for small jugs.

It can be used for medium viscosity fluids (up to 40.000 cP) is made in AISI 316 suitable for any food product, in this version it is especially suitable for ice cream toppings for anyone who requires a very hygienic pump that is quickly disassembled for cleaning or sanitizing the single components.

To use with toppings, if reduced flow is necessary, there is a ball valve with partial closure on the outlet.

DOWNLOAD THE DATA SHEET IN YOUR PREFERRED LANGUAGE

MAIN FEAUTURES OF Hygien Pump M70/H52 Topping

They are pumps based on a new design, created to be quickly disassembled by hand without the need for any special tools. The functional concept is based on an alternating piston with ball check valves, the flow and head are adjustable, they are designed for viscous food products and cosmetic fluids or also for production processes for medical creams. The part in contact with the product is made entirely in AISI 316 Stainless steel, the FDA gasket seals are made in NBR or FKM, UHMWPE, or PTFE.

The gasket seal on the shaft does not require adjustment, and is efficient with any viscosity and pressure, and also is long-lasting. These pumps do not require any special maintenance, are sturdy, and reliable, easy to disassemble for periodical cleaning or for sanitizing the single components. The complete range can be supplied with ATEX Zone certification for the motor section and ATEX Zone 0 for the pump immersed in liquid.

This therefore makes them suitable for use in potentially explosive atmospheres.

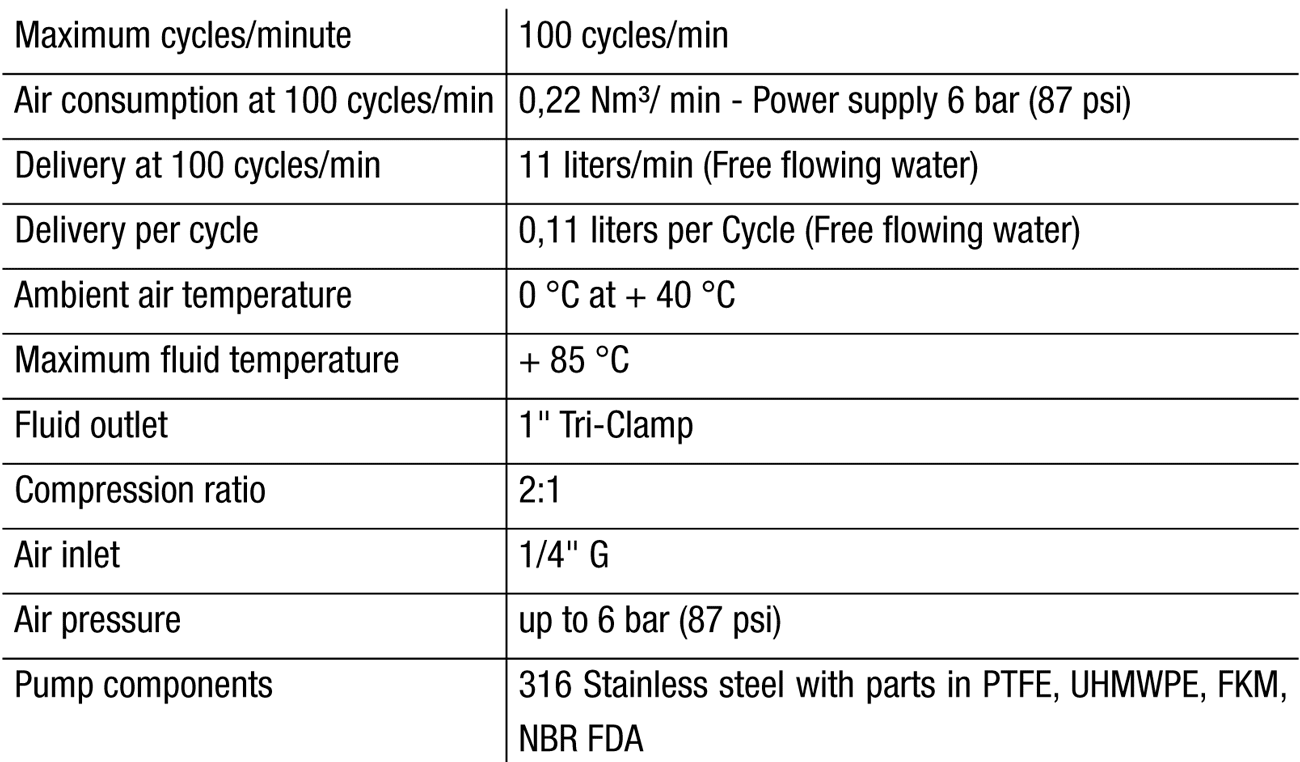

TECHNICAL DATA

Videos related to Hygien Pump M70/H52 Topping

See on video some viscous fluids that this piston pump can pump. Watch the on the other video how our HYGIEN ELEVATOR works.

It carries, lifts and regulates the piston pumps immersion.

It is designed for hygienic production areas and allows the operator to use our pumps safely.

Video Medium/Low viscosity

Video Medium/High viscosity

Video Lifting carriages

CAMPI DI IMPIEGOtest

It is a pump 2:1 with a hygienic design, easy to handle and versatile, it has variable flow rates up to 11 l/min (water) with a short suction tube for small jugs.

To use with toppings, if reduced flow is necessary, there is a ball valve with partial closure on the outlet.

Clicca sul video qui sotto per vedere in modo pratico le nostre pompe per liquidi viscosi in azione, in base ai diversi tipi di viscosità dei fluidi da pompare.

DOWNLOAD THE DATA SHEET IN YOUR PREFERRED LANGUAGE

CARATTERISTICHE PRINCIPALI DELLE POMPE HYGIEN

This therefore makes them suitable for use in potentially explosive atmospheres.

DATI TECNICI

CAMPI DI IMPIEGO

È una pompa 2:1 di costruzione altamente igienica, è rapidamente smontabile per la pulizia o sanificazione dei singoli componenti. È maneggevole e versatile ha portata variabile fino a 23 l/min (acqua). È adatta anche ad essere inserita in fusti chiusi con foro da 2″. Va bene per fluidi di bassa e media viscosità (da 15 a 35.000 cP) è in AISI 316 adatta per qualsiasi prodotto alimentare o cosmetico anche per uso medico-sanitario.

FIELD OF APPLICATION

Pump with 2:1 hygienic design, it is quickly disassembled for cleaning or sanitizing the single components. Easy to
handle and versatile, it has variable flow rates up to 23 l/min (water). It is also suitable for insertion into closed jugs
with holes 2″. It can be used for low and medium viscosity fluids (from 15 to 35.000 cP) is made in AISI 316 Stainless
steel suitable for any food or cosmetic product, as well as for medical-health use.

DOMAINE D’APPLICATION

C’est une pompe 2:1 de fabrication hautement hygiénique, elle est rapidement démontable pour son nettoyage ou la
désinfection de chacun de ses composants. Elle est maniable et polyvalente avec un débit variable jusqu’à 23 l/min
(eau). Elle est également adaptée à son insertion dans des fûts fermés avec ouverture de 2″. Elle convient aux fluides
de viscosité faible et moyenne (de 15 à 35.000 cP) elle est en AISI 316 adaptée à tout produit alimentaire ou cosmétique même pour un usage médical et sanitaire.

ANWENDUNGSBEREICH

Eine Pumpe 2:1 mit hochhygienischer Bauart, die rasch zu Reinigungs- und Desinfektionszwecken der einzelnen
Bauteile ausbaubar ist. Eine vielseitige und handliche Pumpe mit variabler Förderkapazität bis zu 23 l/min (Wasser).
Auch geeignet für das Einsetzen in geschlossenen Behältern mit Öffnung 2″. Besonders angezeigt von niedriger bis
mittlerer Viskosität (von 15 bis 35.000 cP). Hergestellt aus AISI-Stahl 316, daher geeignet für den Umgang mit Lebensmitteln
und Kosmetika, auch im medizinischen und hygienischen Bereich.

CAMPO DE USO

Es una bomba 2:1 de diseño altamente higiénico, y se desmonta rápidamente para limpiarla o desinfectar los componentes
individuales. Es manejable y versátil, tiene un caudal variable de hasta 23 l/min (agua). También es apta
para ser insertada en barriles cerrados con un agujero de 2 “. Va bien para fluidos de viscosidad baja y media (de 15 a
35.000 cP), es de AISI 316, apta para cualquier producto alimentario o cosmético, también para uso médico-sanitario.

ОБЛАСТИ ПРИМЕНЕНИЯ

Этот насос 2:1 в высокогигиеническом исполнении быстро разбирается для очистки или дезинфекции отдельных ком-
понентов. Универсальный и удобный в использовании, он имеет переменную производительность до 23 л/мин (воды).
Его также можно устанавливать на закрытые бочки с отверстием 2”. Насос подходит для жидкостей низкой и средней
вязкости (от 15 до 35.000 сП), выполнен из нержавеющей стали AISI 316 и предназначен для перекачки любых пище-
вых или косметических продуктов, в том числе медико-санитарного назначения.
