CAMPI DI IMPIEGOtest

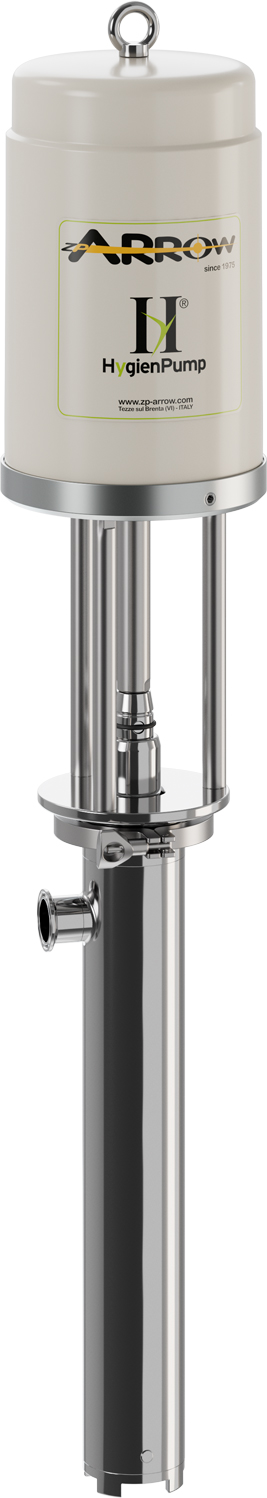

Pump with hygienic design, it is quickly disassembled for cleaning or sanitizing the single components, very versatile and powerful 3:1, with variable flow rates up to 51 l/min (water).
It is suitable for any viscous food or cosmetic liquid (up to 90.000 cP).
It is also often used for body creams or fluid products, also in the medical-health sector.
It can be fitted with a flat pressing scraper to be used with our barrel emptying system. Watch the video.
DOWNLOAD THE DATA SHEET IN YOUR PREFERRED LANGUAGE
CARATTERISTICHE PRINCIPALI DELLE POMPE HYGIEN
They are pumps based on a new design, created to be quickly disassembled by hand without the need for any special tools. The functional concept is based on an alternating piston with ball check valves, the flow and head are adjustable, they are designed for viscous food products and cosmetic fluids or also for production processes for medical creams. The part in contact with the product is made entirely in AISI 316 Stainless steel, the FDA gasket seals are made in NBR or FKM, UHMWPE, or PTFE.
The gasket seal on the shaft does not require adjustment, and is efficient with any viscosity and pressure, and also is long-lasting. These pumps do not require any special maintenance, are sturdy, and reliable, easy to disassemble for periodical cleaning or for sanitizing the single components. The complete range can be supplied with ATEX Zone 1 certification for the motor section and ATEX Zone 0 for the pump immersed in liquid.
This therefore makes them suitable for use in potentially explosive atmospheres.
They are used by immersing the pumping piston in the fluid, or also outside of the product container. For the latter use, we can supply Stainless steel fittings and flexible hoses to connect the suction and the outlet.
We can supply a transport trolley, or a cushioned support for wall mounting.
For efficient and safe use, we recommend our pneumatic elevator on wheels or fixed on the ground.

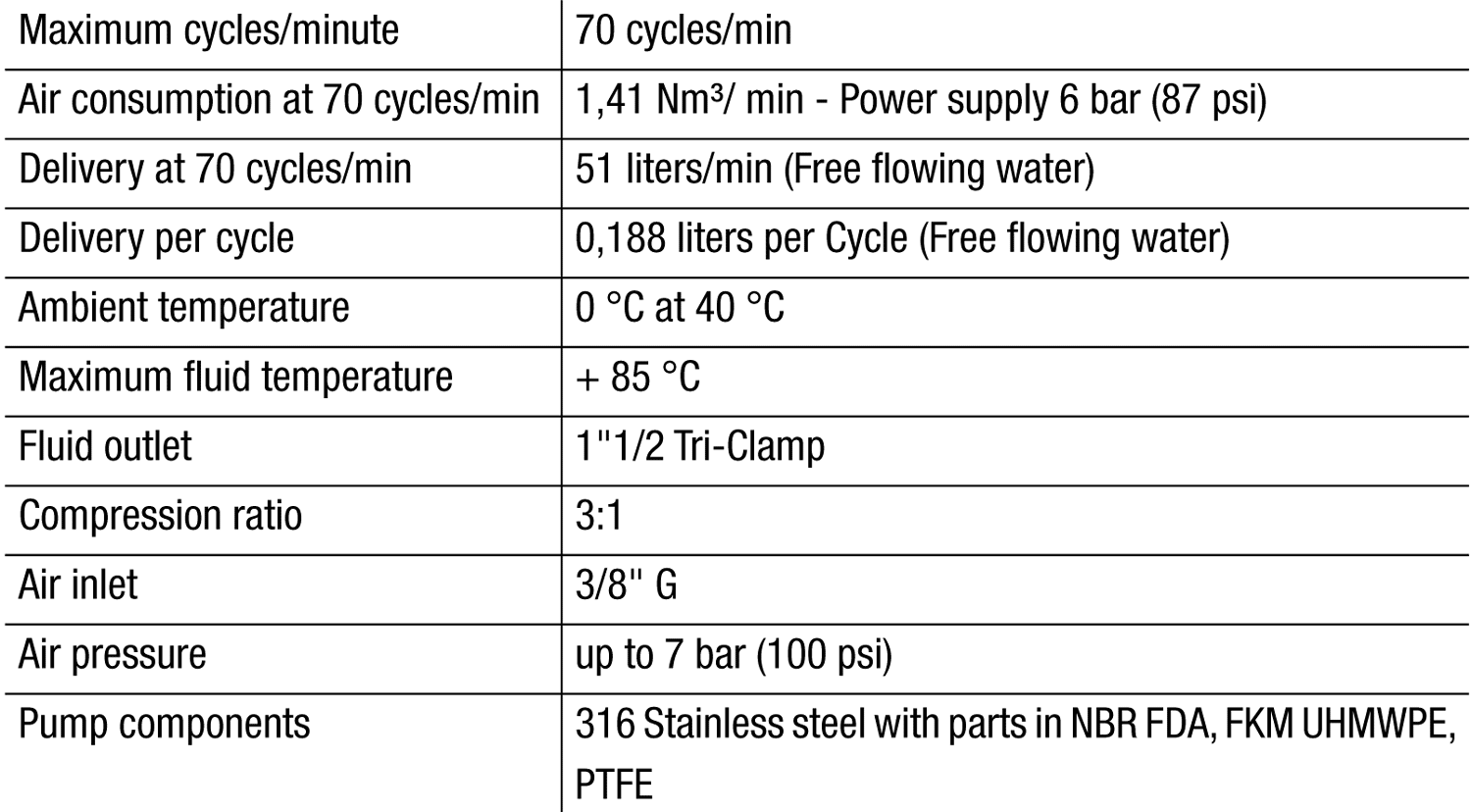

DATI TECNICI
