Food Pump MZ125/FZ70

Inox 316 polished stainless steel

FIELD OF APPLICATION

It is a versatile and powerful pump (4:1) with flow rate up to 32 l/min (water) good head suitable for high viscosity (from 50.000 to 100.000 cP) making it one of the most popular.

It is constructed in AISI 316 Stainless steel, and is therefore suitable for pumping food and cosmetic products.

It is also often used in the chemical industry for moderately acidic or alkaline aggressive viscous products or for glues and adhesives, because it is easy to disassembly and clean.

DOWNLOAD THE DATA SHEET IN YOUR PREFERRED LANGUAGE

MAIN FEAUTURES OF Food Pump MZ125/FZ70

They are pumps based on a new design, created to be quickly disassembled. The functional concept is based on an alternating piston with ball check valves, the flow and head are adjustable, they are designed for viscous food products and cosmetic fluids or other viscous fluids compatible with the steel used to construct the pumps.

The part in contact with the product is made entirely in AISI 316 Stainless steel, the FDA gasket seals are made in NBR or FKM, UHMWPE, or PTFE.

The gasket seal on the shaft does not require adjustment, and is efficient with any viscosity and pressure, and also is long-lasting.

These pumps do not require any special maintenance, are sturdy, and reliable, easy to disassemble for periodical cleaning or for sanitizing the single components.

The complete range can be supplied with ATEX Zone 1 certification for the motor section and ATEX Zone 0 for the pump immersed in liquid.

This therefore makes them suitable for use in potentially explosive atmospheres.

They are used by immersing the pumping piston in the fluid, or also outside of the product container. For the latter use, we can supply Stainless steel fittings and flexible hoses to connect the suction and the outlet. We can supply a transport trolley, or a cushioned support for wall mounting.

For efficient and safe use, we recommend our pneumatic elevator on wheels or fixed on the ground.

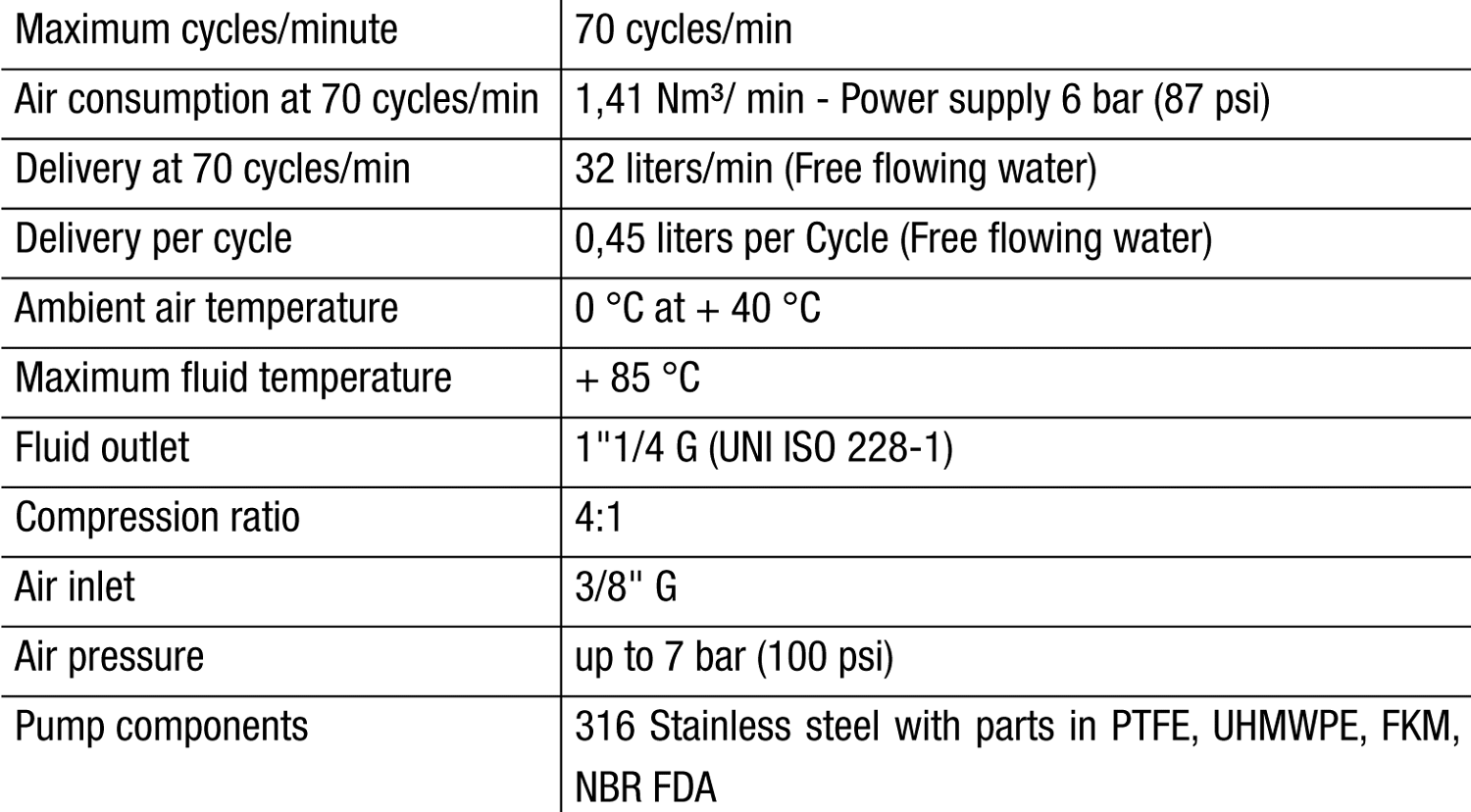

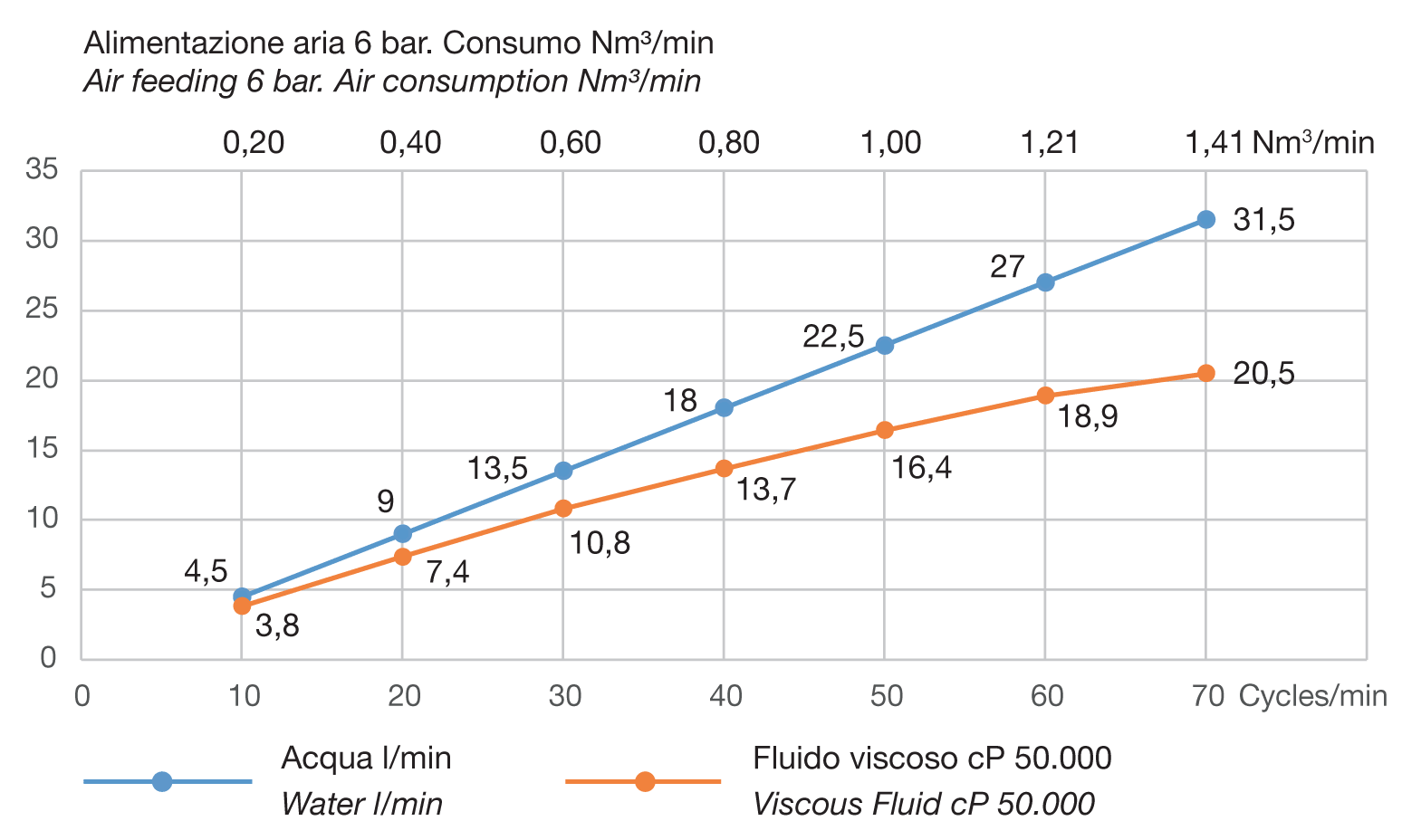

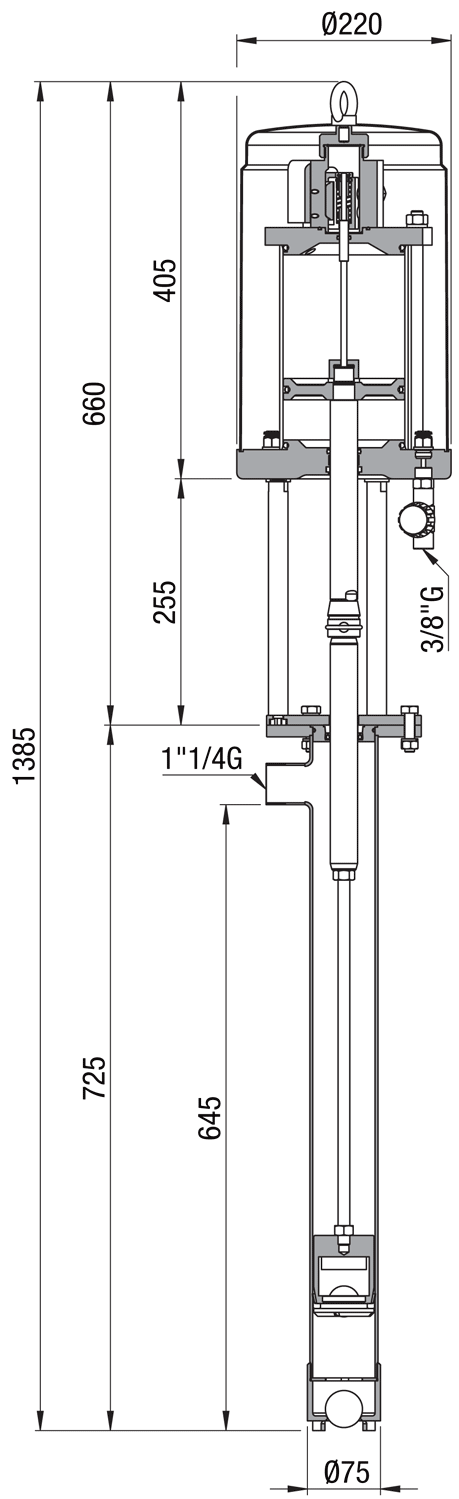

TECHNICAL DATA

Videos related to Food Pump MZ125/FZ70

See on video some viscous fluids that this piston pump can pump. Watch the on the other video how our HYGIEN ELEVATOR works.
It carries, lifts and regulates the piston pumps immersion.
It is designed for hygienic production areas and allows the operator to use our pumps safely.

Video Medium/High viscosity

Video High viscosity

Video Lifting carriages

CAMPI DI IMPIEGOtest

It is a versatile and powerful pump (4:1) with flow rate up to 32 l/min (water) good head suitable for high viscosity (from 50.000 to 100.000 cP) making it one of the most popular.

It is constructed in AISI 316 Stainless steel, and is therefore suitable for pumping food and cosmetic products.

It is also often used in the chemical industry for moderately acidic or alkaline aggressive viscous products or for glues and adhesives, because it is easy to disassembly and clean.

Clicca sul video qui sotto per vedere in modo pratico le nostre pompe per liquidi viscosi in azione, in base ai diversi tipi di viscosità dei fluidi da pompare.

DOWNLOAD THE DATA SHEET IN YOUR PREFERRED LANGUAGE

CARATTERISTICHE PRINCIPALI DELLE POMPE HYGIEN

The part in contact with the product is made entirely in AISI 316 Stainless steel, the FDA gasket seals are made in NBR or FKM, UHMWPE, or PTFE.

The gasket seal on the shaft does not require adjustment, and is efficient with any viscosity and pressure, and also is long-lasting.

These pumps do not require any special maintenance, are sturdy, and reliable, easy to disassemble for periodical cleaning or for sanitizing the single components.

The complete range can be supplied with ATEX Zone 1 certification for the motor section and ATEX Zone 0 for the pump immersed in liquid.

This therefore makes them suitable for use in potentially explosive atmospheres.

For efficient and safe use, we recommend our pneumatic elevator on wheels or fixed on the ground.
